Power Source DC 3 Phase (1200 amp) Welding Type Submerged Are Welding Phase 3 Phase Kaiyuan Brand 1200 amp Thyristor Ed Controlled DC SAW Welding Machine With all Welding Accessories.

A variety of waveforms ensures superior welding for aluminum and a wide range of metals. Selectable AC output frequency enables melting of different varieties of aluminium (Including 6000 & 7000) AC balance control-cleaning width adjustment AC standard TIG mode/Mixed TIG mode TIG Pulse contro

Root Welding control technology IBC (The Arc Ignition & Burn Back Control) Pulse Constant Arc Length Control, ALC (Arc Length Consistence) HL-Pulse (Dual Pulse, S-Pulse, SUS Pulse) & MUP (Mix Up Pulse) Suitable for thin, thick plate, MS & SS Welding Weld Parameter Locking (in-built) 100 Channel Memory Secondary short circuit protection as a standard function Deepen penetration software (Optional)

Advanced arc stability for high-quality welds Flexible parameter settings for materials & thicknesses Robust build for long-term durability in industrial applications Secondary short circuit protection as a standard function In-built SS software and suitable for SS, MS & FCAW Inbuilt Data Logger with following features (Optional): RMC Controller suitable for Parameter Locking Real-time Monitoring & Welding cost analysis Analyse welding performance to ensure consistent quality Troubleshoot issues with detailed parameter records

Brand Panasonic Model YD-350GZ4 Phase 3-Phase Current 350 A Voltage 380-415 V Dimension (L x B x H) 380x550x640 mm Product Type New Duty Cycle 60% Weight 61 kg Rated Duty Cycle 60% Frequency 50-60 Hz Output Current 350 A Rated Input 17.7 kVA Dimension 380 x 550 x 640 mm Rated Output Voltage 36 V Power Control Method IGBT Inverter Welding Processes CO2 / MAG / MIG Max No Load Voltage 78 VDC

Brand Panasonic MODEL YD-250KR 2 INPUT SUPPLY 415 +10% ,-10% PHASE/FREQUENCY THREE / 50-60 HZ POWER CONSUMPTION 9.5 KVA/7.9KW WELDING CURRENT RANGE 50-250AMP RATED OUTPUT VOLTAGE 15-27 VOLTS CONFIRMATION TO INTERNATIONAL STANDERDS IEC 60974-1:2000/GB 15579 .1:2004 INSULATION H CLASS DIMENSIONS(LXBXH)MM 376 X 675 X 747 WEIGHT 94 KGS PRODUCT TYPE NEW WELDING CURRENT DUTY CYCLE 60% 250AMP WELDING CURRENT DUTY CYCLE 100% 194AMP

Model Number 300 TSP Welding Type TIG Welding Voltage 415V, +10% (Input Voltage) Output Current Range 5-300 A Brand Panasonic Frequency 50-60 Hz Weight 136 Kg Duty Cycle 60% Phase 3 Phase Rated Voltage 16-20 V Ingress Protection IP21S Class

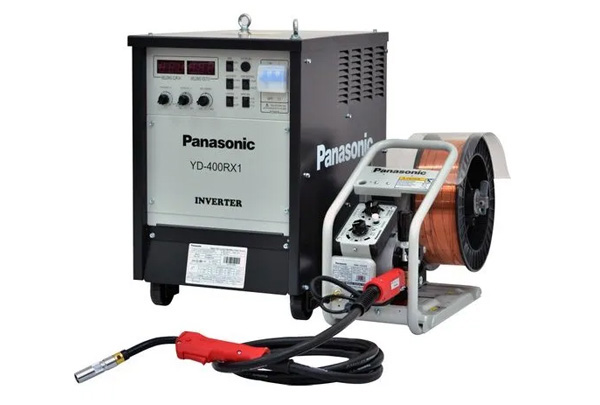

Brand Panasonic MODEL YD-400RX 1 INPUT SUPPLY 415 +10% -20% PHASE THREE /50-60HZ POWER CONSUMPTION 16.2KVA/15.6KW WELDING CURRENT RANGE 50-400AMP RATED OUTPUT VOLTAGE 16.5-35.5 VOLTS PROTECTION CLASS CLASS IP 23 INSULATION H CLASS DIMENSIONS(LXBXH)MM 545 X 380 X 570 WEIGHT 52 KGS PRODUCT TYPE NEW WELDING CURRENT AT 60% DUTY CYCLE 400AMP WELDING CURRENT AT 100% DUTY CYCLE 310AMP OPERATING TEMPERATURE .-10 TO 50 DEG CELCIUS

Available in 250 AMP, 400 AMP & 500 AMP options Six phase thyristorised system gives ripple-free DC output superior quality welding Synergic mode (unified mode) is available for easy setting of current and voltage Fresh tip treatment and burn-back time control are adjustable Secondary short circuit protection is a standard function Arc sensitivity is selectable by changing the tap of reactor
